3 Theem Fais Fais Fais Distribution Transformer
3 Theem Fais Fais Fais Distribution TransformerKev piav qhia
3 Theem Fais Fais Fais Distribution Transformer yog ib qho khoom siv tseem ceeb hauv cov tshuab hluav taws xob hluav taws xob, tsim los hloov hluav taws xob high-voltage los ntawm daim phiaj mus rau qhov hluav taws xob qis uas tsim nyog rau kev lag luam, kev lag luam, thiab kev siv hauv tsev. Nws nta peb windings, ib qho rau txhua theem, ua rau nws ua tau zoo los tswj lub zog xav tau ntawm peb-theem hluav taws xob tshuab. Qhov no transformer ua kom lub zog sib npaug ntawm txhua theem, txhim kho kev ua haujlwm thiab txo qis zog poob. Dav siv nyob rau hauv ntau yam kev siv, nws muab kev txhim khu kev qha thiab ruaj khov voltage theem, ua rau nws tseem ceeb rau niaj hnub fais fab kev faib tes hauj lwm.
Pad-mounted transformer
|
Kev ntsuas fais fab |
45 kVA ~ 6000 kVA |
|
Thawj Voltage Ratings |
mus 35kv |
|
Secondary Voltage Ratings |
mus 24,94kv |
|
HV Tap Range |
± 2 × 2.5% lossis lwm yam |
|
Hom kev sib txuas |
Delta/Wye |
|
Winding tus neeg xyuas pib |
Tooj los yog Aluminium |
|
HOM |
Loop feed / Radial pub |
|
Kev teeb tsa |
Nyob pem hauv ntej / tuag pem hauv ntej |
|
BIL |
30-150kV |
|
Cov qauv |
ANSI, IEEE, DOE, CSA, NEMA, UL |
|
Daim ntawv thov |
Cov chaw nyob, tsev so, tsev neeg ib leeg, chaw ua si, kev faib khoom |
|
Roj Hom |
Mineral Roj los yog Biodegradable Ntuj Zaub Roj, Tsis yog PCB kua |
|
Xim tiav |
Tswb Ntsuab |
|
Enclosure Rating |
NEMA 3R Weatherproof Wiring Txee, Sealed Tank |
Ncej Mounted Transformer
|
Cov cwj pwm tseem ceeb |
|
|
Kev lag luam tshwj xeeb yam ntxwv |
|
|
Khoom |
Roj Filled Ncej Mounted Transformer |
|
Theem |
Ib leeg |
|
Coil Number |
Autotransformer |
|
Lwm yam cwj pwm |
|
|
Qhov Chaw Keeb Kwm |
Zhejiang, Suav teb |
|
Qauv nab npawb |
Ib theem transformer |
|
Rated peev |
Los ntawm 10kva mus rau 333kva |
|
High Voltage |
34.5kV thiab qis dua |
|
Tsawg voltage |
120/240/277/480V |
|
Ntau zaus |
50/60Hz |
|
Txuj |
IEC, ANSI, IEEE, CSA |
|
Vector pawg |
II 0, Ii6 |
|
Khoom siv |
Aluminium / tooj liab |
|
Daim ntawv thov |
Daim phiaj hluav taws xob nyob deb nroog, thaj chaw thaj tsam roob, cov zos tawg, kev ua liaj ua teb, teeb pom kev zoo, kev siv hluav taws xob, kev tsheb ciav hlau, Lub nroog fais fab tuag |
|
Hom |
Roj-immersed Transformer |
|
Feature |
Kev poob qis |
Cov lus hauv qab no yog tus qauv parameter ntawm tus qauv ncej mounted transformer.
|
CAPACITY (kVA) |
η(%) |
ε(%) |
Io(%) |
CORE LOSS (W) |
COPPER LOSS (W) |
DIMENSION (MM) |
Roj (L) |
TAG NRHO WT (kg) |
||
|
W |
D |
H |
||||||||
|
10 |
97.2 |
3 |
1.9 |
45 |
180 |
440 |
520 |
940 |
30 |
100 |
|
15 |
97.3 |
3 |
1.8 |
58 |
215 |
450 |
530 |
970 |
30 |
130 |
|
25 |
97.5 |
2.8 |
1.7 |
82 |
295 |
500 |
580 |
980 |
40 |
180 |
|
37.5 |
97.7 |
2.6 |
1.6 |
110 |
400 |
520 |
600 |
1000 |
40 |
220 |
|
50 |
98.1 |
1.9 |
1.5 |
140 |
490 |
540 |
630 |
1060 |
45 |
280 |
|
75 |
98.2 |
1.8 |
1.4 |
200 |
700 |
590 |
670 |
1100 |
55 |
380 |
|
100 |
98.3 |
1.7 |
1.3 |
260 |
900 |
680 |
680 |
1120 |
60 |
450 |
|
167 |
98.4 |
1.6 |
1.2 |
450 |
1500 |
710 |
800 |
1190 |
80 |
580 |
|
250 |
98.5 |
1.5 |
1.1 |
650 |
2250 |
980 |
950 |
1350 |
215 |
980 |
|
333 |
98.6 |
1.4 |
1 |
800 |
3000 |
1040 |
960 |
1400 |
240 |
1100 |
Cov khoom kuaj
√ Winding Resistance Test
√ Rwb thaiv tsev Resistance Test
√ Voltage Ratio Error Test
√ Short-circuit Impedance Test
√ Tsis-load Poob (Wattage) Test
√ Load Poob (Wattage) Test
√ Induced Voltage Withstand Test
√ Sib cais qhov hluav taws xob tiv thaiv kev sim
√ Kev Ntsuas Kev Ntsuas Siab

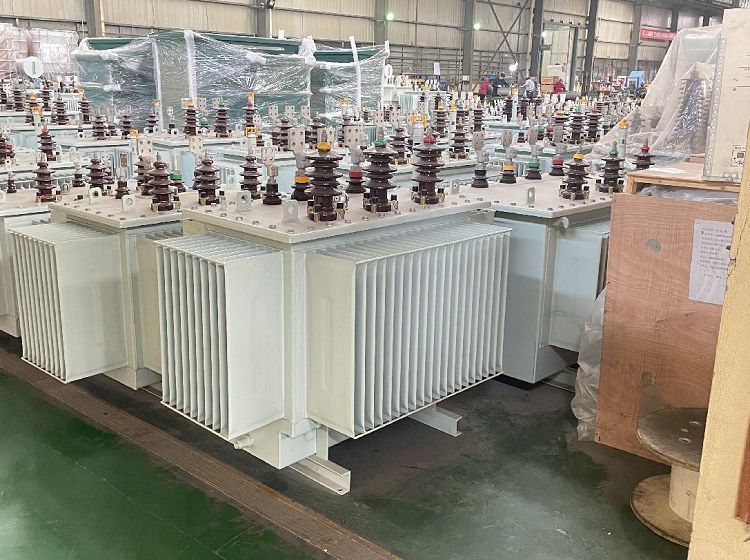

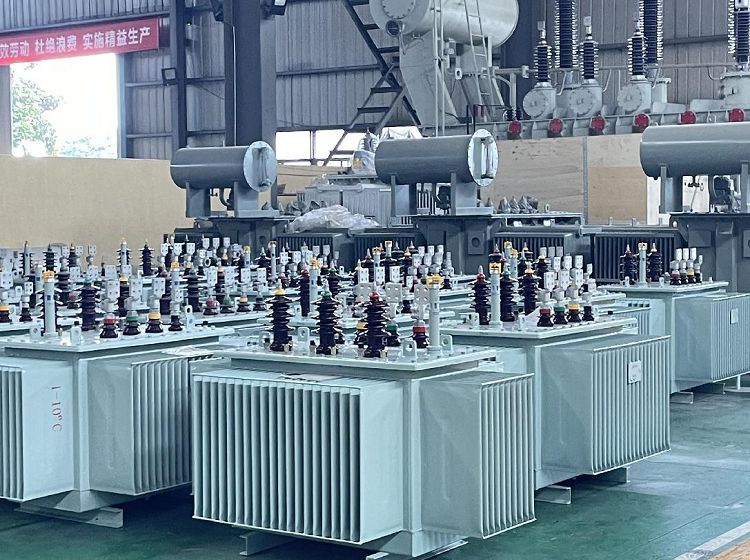

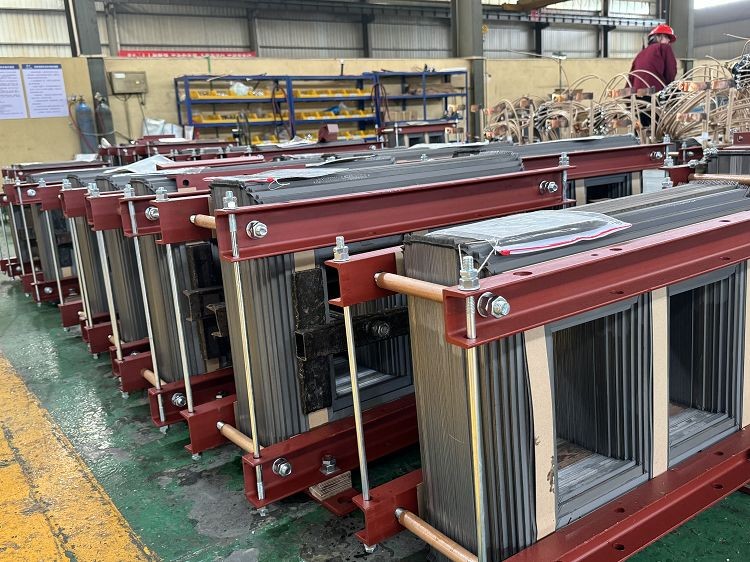

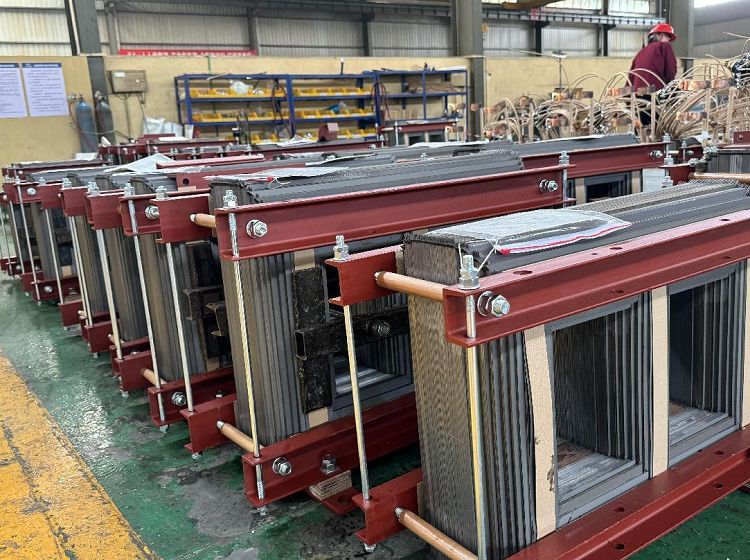

Distribution Transformer Duab
Distribution Transformer Ntim
Cov lus nug nquag nug (FAQ)
